Baseline Architectures#

CODES ships with four surrogate families. Each lives under codes/surrogates/ with a dedicated config dataclass (*_config.py). This page summarizes their design so you know which model to pick or extend.

All four share the same AbstractSurrogateModel interface: they receive (initial state, desired time, optional parameters) and emit the predicted state at that time. Training data are sampled at predefined timesteps, but each architecture treats time as a continuous input so you can query any point within the training horizon. Timesteps are defined per dataset but otherwise flexible, they can be equispaced, logarithmic, or irregular. They are always normalized to [0, 1] before feeding into the models.

MultiONet (DeepONet variant)#

Files: codes/surrogates/DeepONet/deeponet.py, config deeponet_config.py.
Idea: Operator network with a branch net (ingests state + fixed parameters) and a trunk net (ingests timesteps). Their outputs form an inner product that predicts the next state.
Key knobs: hidden_size, number of branch/trunk layers, output_factor, activation function, loss choice (MSE or SmoothL1), and optimizer/scheduler inherited from AbstractSurrogateBaseConfig. Optional parameter routing lets you feed physical parameters either into the branch (state) or trunk (time) network.
When to use: Strong baseline for irregular sampling and parametric tasks because branch/trunk inputs can be customized via prepare_data.

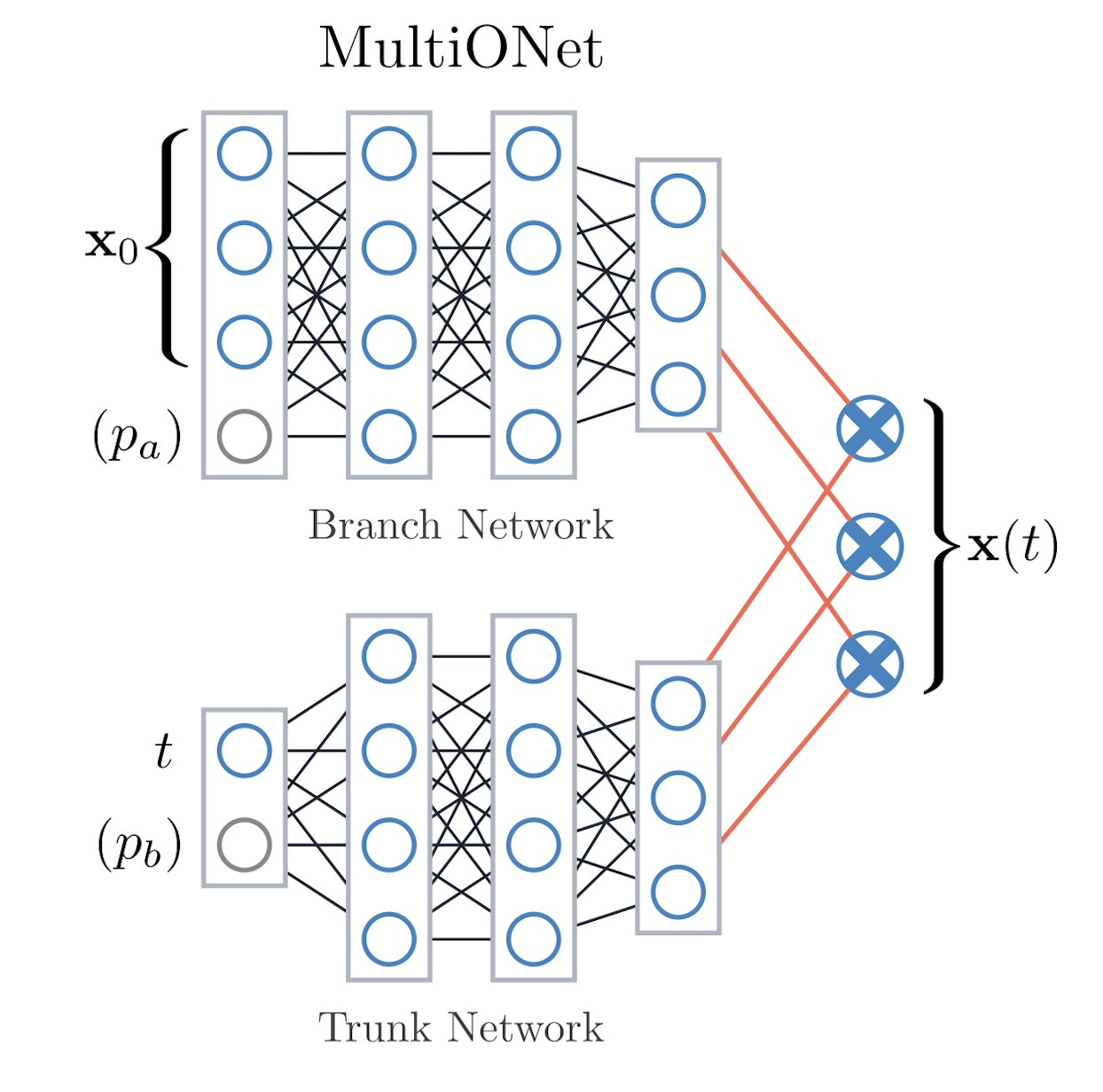

MultiONet schematic — MultiONet splits inputs across branch (state) and trunk (time) networks before combining them.#

FullyConnected (FCNN)#

Files: codes/surrogates/FCNN/fcnn.py, config fcnn_config.py.
Idea: Classic multilayer perceptron that flattens the trajectory context and predicts the next timestep. Parameters are simply concatenated to the inputs, keeping the architecture bias-free.
Key knobs: num_hidden_layers, hidden_size, activation, dropout, and optimizer settings from the base config.
When to use: Fast baseline for small- to medium-scale datasets; useful sanity check before moving to heavier models.

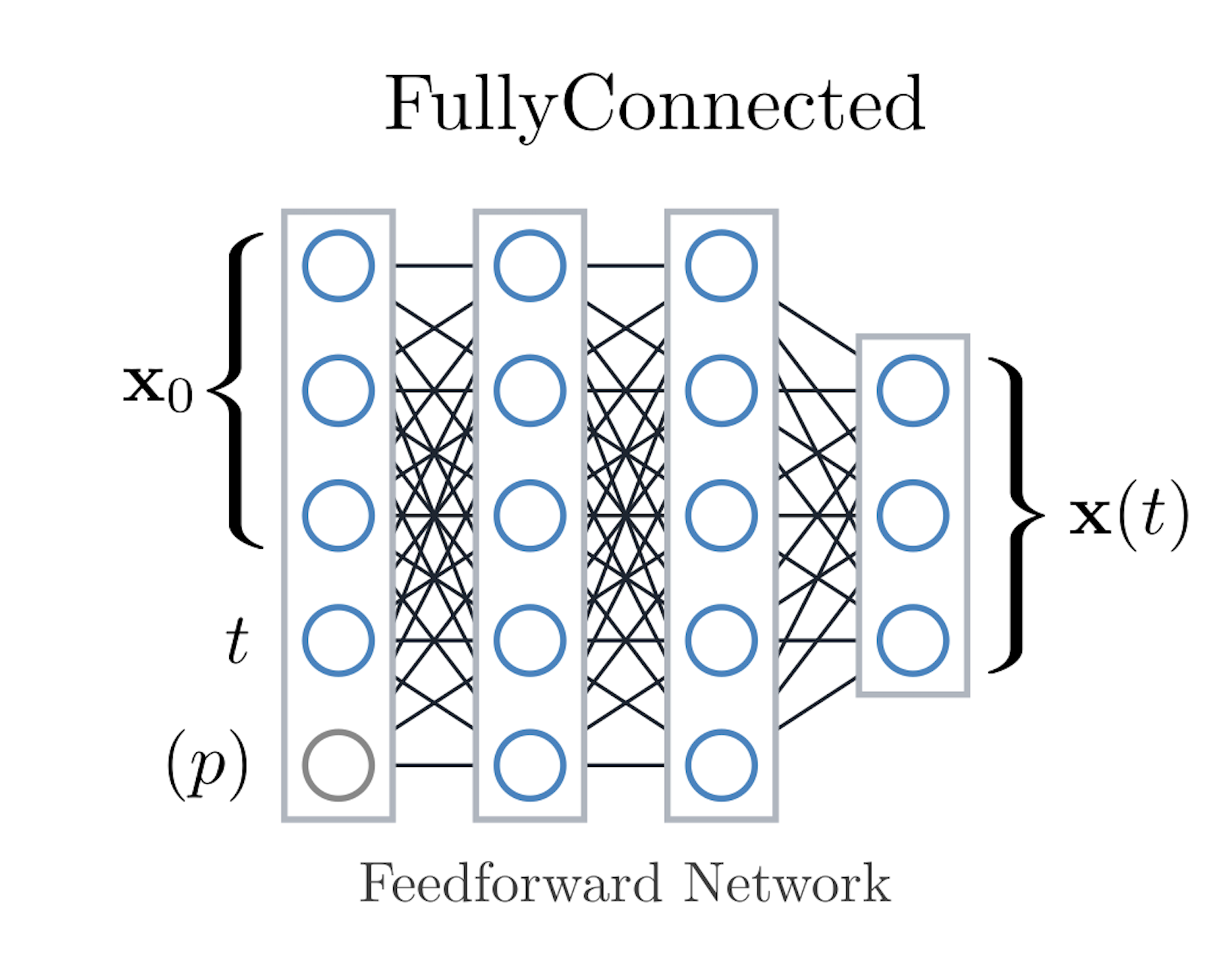

FullyConnected schematic — FCNN consumes the initial state, desired time, and optional parameters with a single fully connected stack.#

LatentNeuralODE#

Files: codes/surrogates/LatentNeuralODE/latent_neural_ode.py, config latent_neural_ode_config.py.

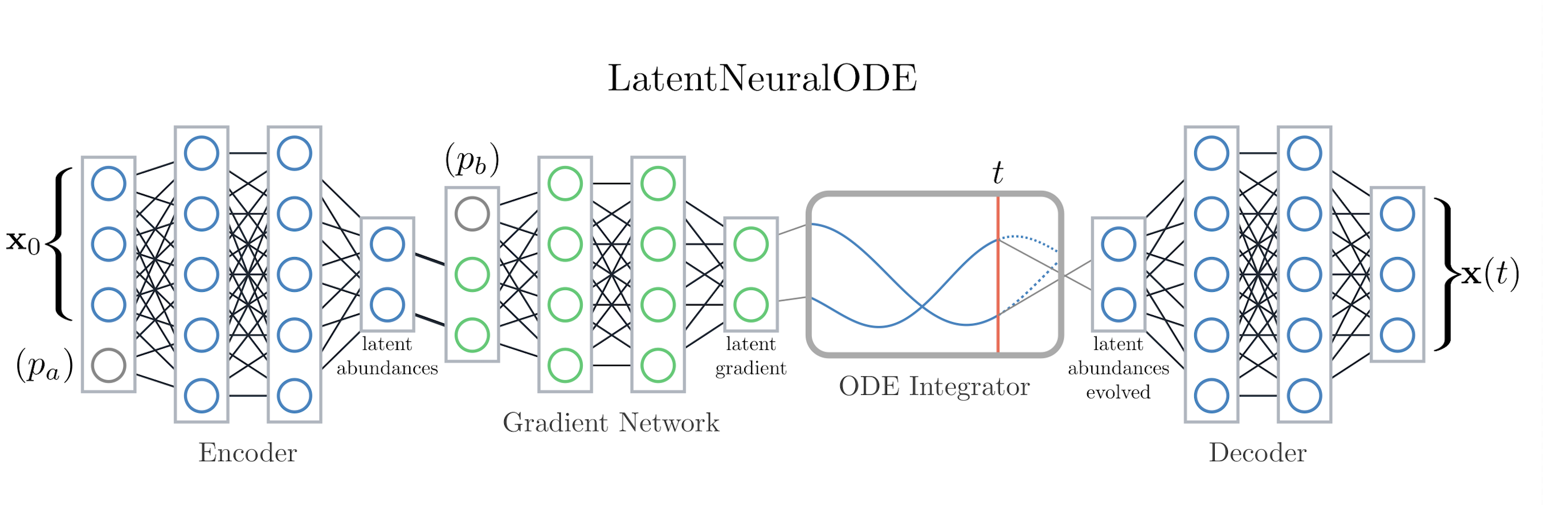

Idea: Encodes sequences into a latent space, integrates dynamics via a neural ODE block, then decodes back to the observable state.
Key knobs: Encoder/decoder depth/width, latent dimensionality, ODE solver depth (ode_layers) and width, activation choice, KL weighting, and rollout horizon. Parameters can enter via the encoder (concatenated with abundances) or as inputs to the gradient network, influencing latent dynamics rather than the encoding itself.
When to use: Long-horizon forecasting or scenarios where latent dynamics better capture system behavior than direct mapping.

LatentPolynomial (LatentPoly)#

Files: codes/surrogates/LatentPolynomial/latent_poly.py, config latent_poly_config.py.
Idea: Encodes trajectories into a latent state, fits polynomial dynamics in that space, and decodes to observations. Trades expressiveness for analytic structure.
Key knobs: Polynomial degree, latent feature count, encoder/decoder layer counts and widths, activation, and regularization.
When to use: Systems known to follow low-order polynomial dynamics or when interpretability of the latent dynamics matters. Parameters can optionally drive a dedicated “polynomial network” that predicts the coefficients used during latent evolution.

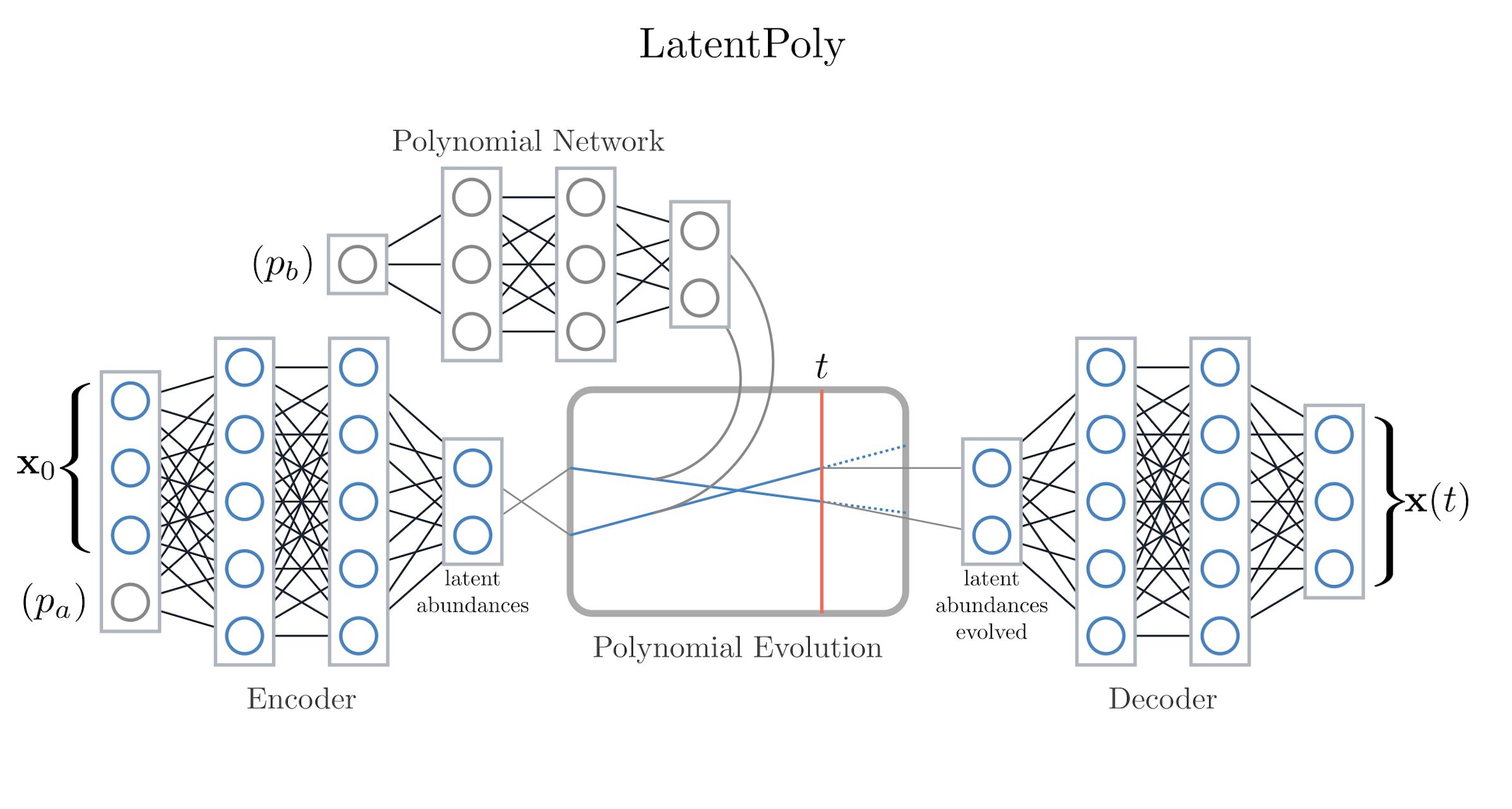

LatentPoly schematic — LatentPoly learns parameter-aware polynomial coefficients that evolve the latent state.#

Working with configs#

Each surrogate has a config dataclass inheriting from AbstractSurrogateBaseConfig. Shared fields include learning rate, optimizer (adamw/sgd), scheduler (cosine, poly, schedulefree), activation, and loss definition.
Dataset-specific defaults live in datasets/<name>/surrogates_config.py. When dataset.use_optimal_params: true, CODES loads the corresponding dataclass and merges it with any overrides from config.yaml.
During tuning you reference config fields by name inside optuna_params so the sampled values get injected before training. Optional architectural variants (e.g., parameter routing choices) are exposed as categorical hyperparameters so studies can discover the best scheme per dataset.

If you introduce a new surrogate, follow the same pattern: codes/surrogates/<Name>/, config dataclass, and an entry in the docs so downstream users know how to configure it.
